New design indoor PT camera with night vision

Short Description:

1. It is a 1080P auto tracking wifi PT IP camera.
2. App remote control in anywhere at any time.
3. Supports motion automatic tracking function.
4. Built-in 6pcs IR LED infrared lights, and IR-cut technology, supports night vision function, available day and night.
5. PIR effective range: 5M.
6. Support motion detection and message push., prevent intruders.




Product Detail

Product Tags

 Features

1. It is a 1080P auto tracking wifi PT IP camera.
2. App remote control in anywhere at any time.
3. Supports motion automatic tracking function.
4. Built-in 6pcs IR LED infrared lights, and IR-cut technology, supports night vision function, available day and night.
5. PIR effective range: 5M.
6. Support motion detection and message push., prevent intruders.
7. Support external 128GB Micro TF card.
8. Two-way audio.
9. One mobile phone APP can control multiplycameras.
10. Free APP for iOS/Android.
APP: “YCC365Plus”, or “TUYASmart”  for optional, you can download from Apple Store or Google Play.

Specifications

Model: PT02
System





Main Processor GK7102
image sensor GC1034/GC2053
Operation System Embedded LINUX OS system
Video













High Definition 720P/1080P
Video Compression Smart H.264+

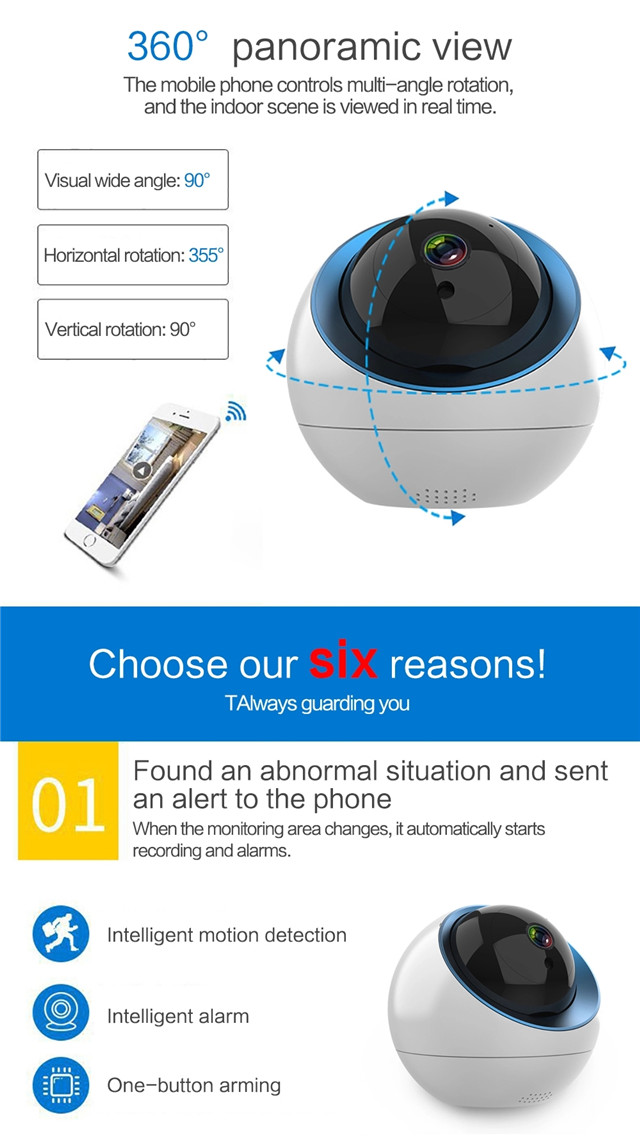

Rotation angle Horizontal:355°  ; vertical: 90°
Object tracking Support
low illumination 0.1LUX/F1.2
picture Capture Support
Video Flip Support
Audio



Coding standard G.711
Two-way Speech Support
Record management









Video file size 2.5GB-4.5GB/Day
Record Mode Manual record, motion detection record, scheduled record, alarm record
Video storage Max 128GB TF Card(not included), Cloud storage
playback, back up Support
Alarm trigger Video Push,Alarm recording,screen shot capture
Network









Network Interface 1*RJ45 , 10/100M10-100 Base-T,  self-adaptable Ethernet port
WIFI 802.11b/g/n
Network Protocol Support TCP/IP,RTSP,ONVIF, etc
transmission mode P2P,Smart Cloud Sever
WIFI connection Sweep QR code,Network Cable connection,AP Hotspot Addition
extend



TF Card Maximum support 128GB TF card
Reset key Support
power supply



Power DC 5V 1.5A
Power consumption 5W
work environment







Suitable place Home,shop,School,factory
Installation mode Flat put,Wall mounted,hoisting
Working Temperature -10℃-+55℃
Working humidity 10%-90%
Other





Camera lens 3.6MM
Lamp board 6 pcs

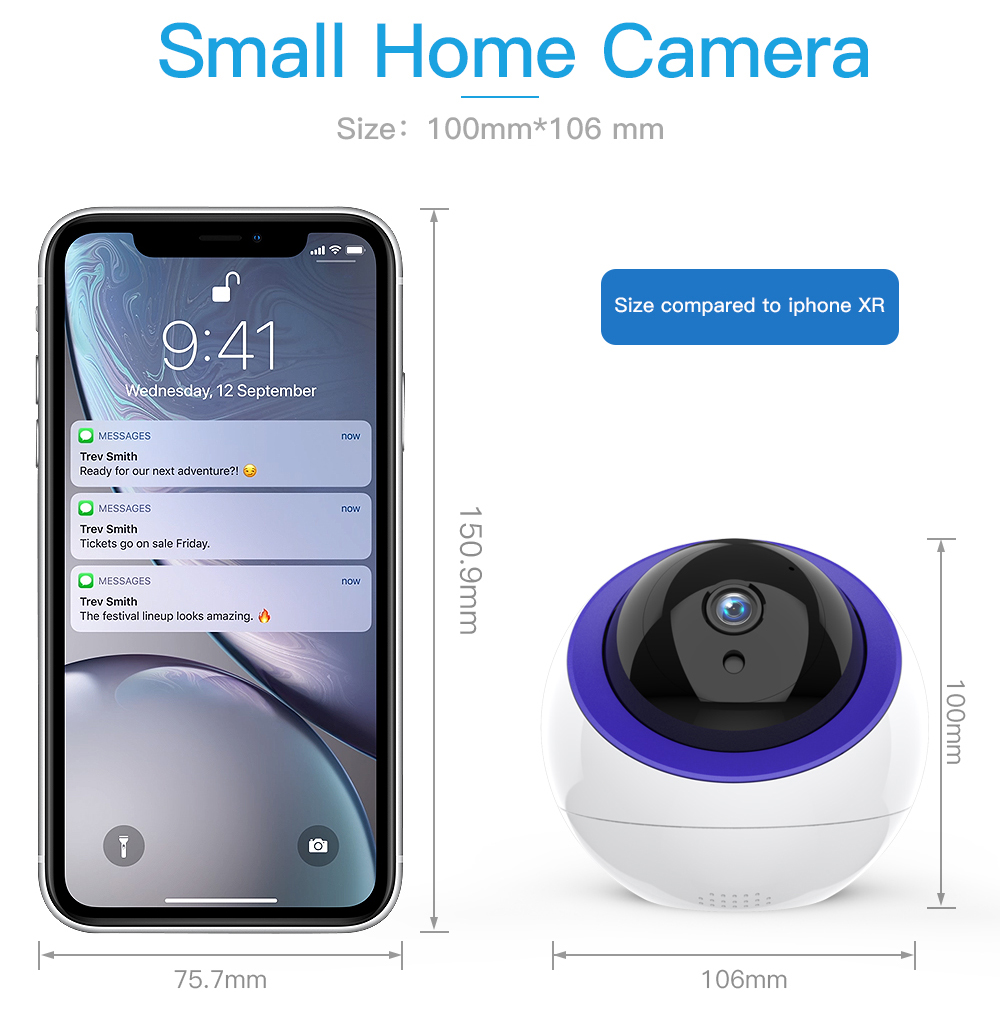

Product size 113*113*100 (mm)
